The Emoryseric Mini Tube Amplifier is a compact, stereo integrated amplifier designed for audiophiles seeking the warmth of analog sound in a limited space. By utilizing a Triode-based Class A circuit, this amplifier avoids the digital harshness often found in Class D mini-amplifiers, delivering a soundstage that is rich in mid-range detail and vocal clarity.
Key Features
Authentic Tube Amplification: The signal path is fully processed by vacuum tubes, with 6H2N handling voltage amplification and dual 6N1N tubes handling power output.
Near-Field Acoustic Design: Tuned for precision at lower volumes, making it an ideal companion for PC Hi-Fi setups where clarity at close range is paramount.

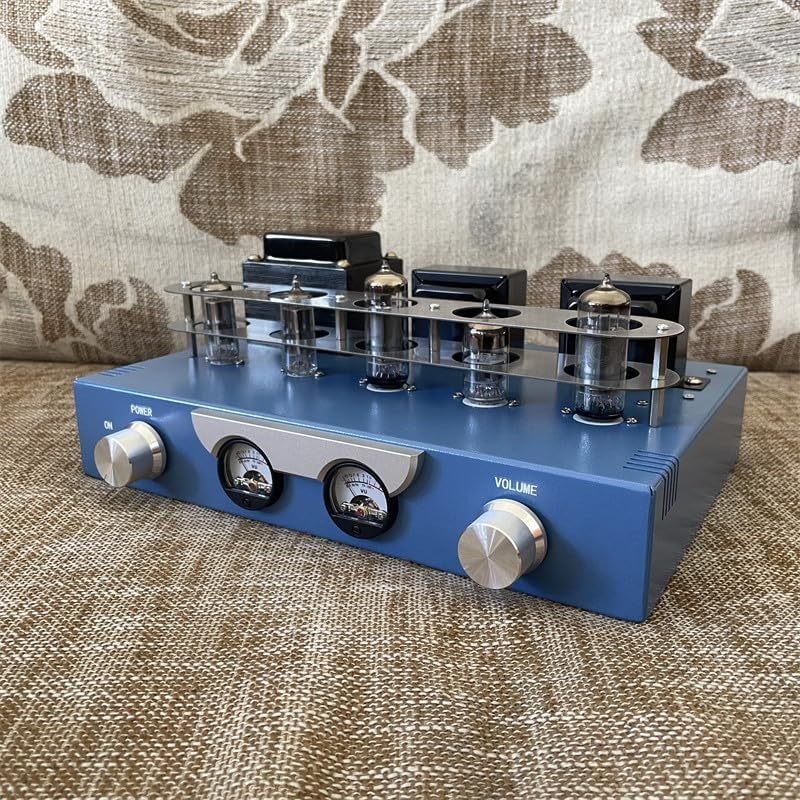

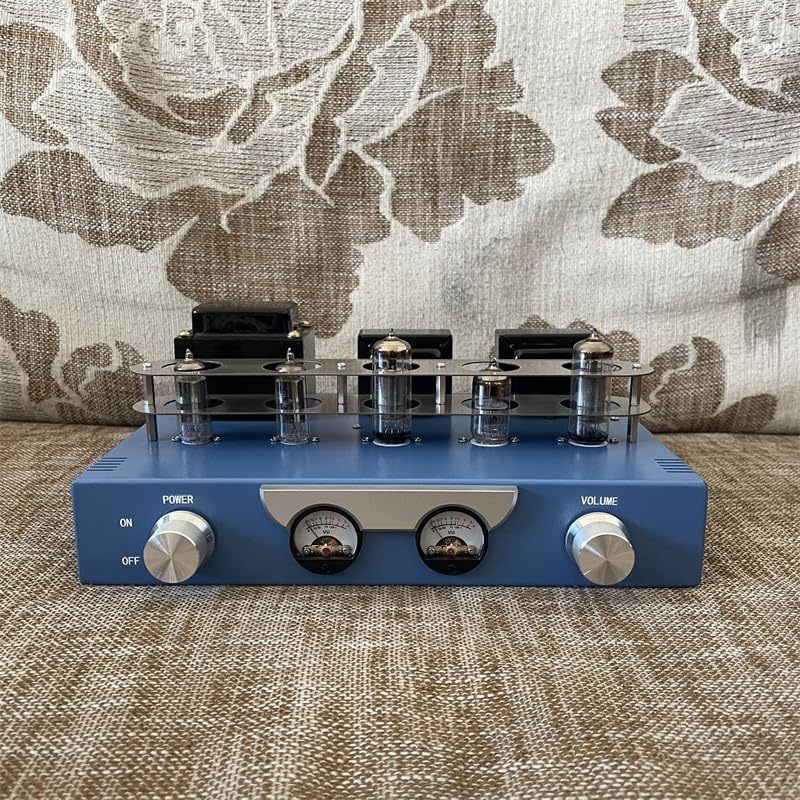

Visual Feedback: Dual front-facing VU meters monitor output levels, adding a functional and aesthetic vintage element.
Technical Specifications
Tube Lineup: 6H2N x1 (Pre), 6N1N x2 (Power), 6Z4 x2 (Rectifier)
Circuit Type: Single-Ended Class A (Triode Operation)
Power Output: ~2W RMS / 3.5W Peak per channel
Frequency Response: 20Hz - 20kHz
Input Impedance: 100kΩ
Output Impedance: 4Ω / 8Ω

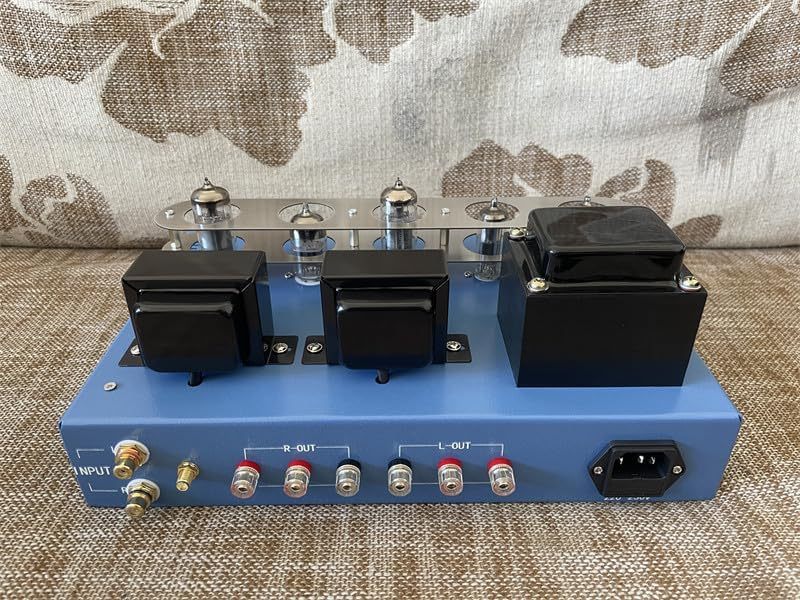

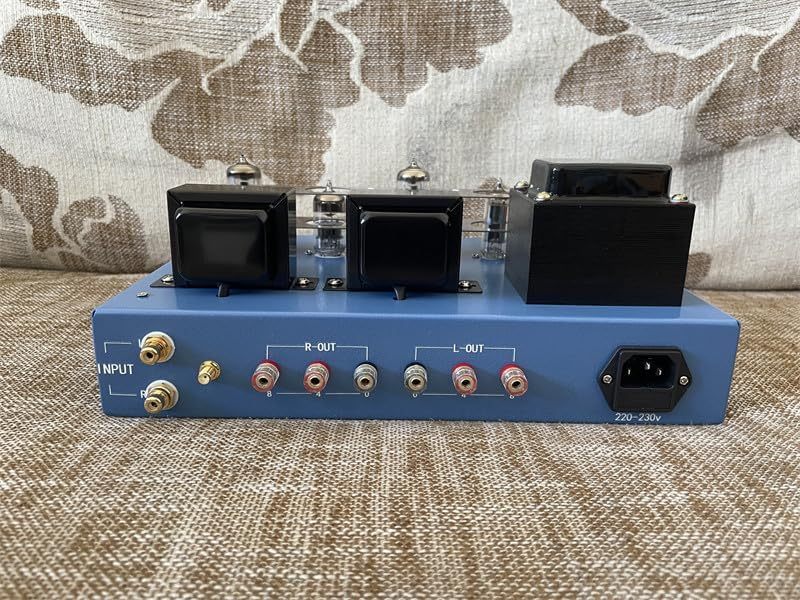

Input Interface: RCA (Gold Plated)
Dimensions: Compact desktop footprint
Chassis Material: Steel with Blue Finish
Recommended Usage For optimal performance, pair this amplifier with High-Sensitivity Bookshelf Speakers (Sensitivity >89dB recommended) or high-efficiency full-range desktop speakers. Ensure the unit is placed on a stable surface with adequate ventilation for the tubes.
Package Contents 1 x Emoryseric Tube Amplifier Unit 1 x AC Power Cord (US Standard)
